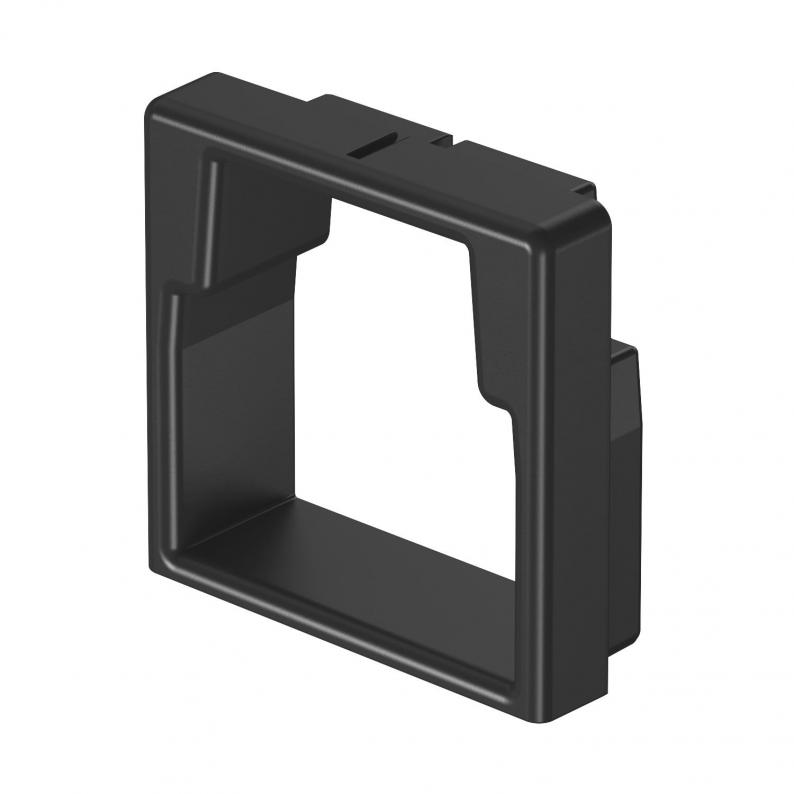

Edge protection ring KSR 30030, for LKM cable duct type 30030
Type LKM KSR30030 | Item no. 6249746 | EAN 4012197376888
Item no. / Type
6249746 / LKM KSR30030
Smallest selling unit: 5 piece
5piece
Description
Edge protection ring for the open ends of LKM cable trunking.
Technical data
Dimensions
| Length | 11 mm |
|---|---|
| Width | 32 mm |
| Height | 31 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Protection rating | IP30 |
| Protection rating IK code | IK10 |
| Suitable for | Cable routing duct |
| Type | Injection-moulded part |
| for plate thickness, min. | 0,75 mm |
| Dimension | 30x30mm |
| Material | Thermoplastic elastomer |
| Colour | Graphite black; RAL 9011 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0125 kg CO2e / 1 Piece |
