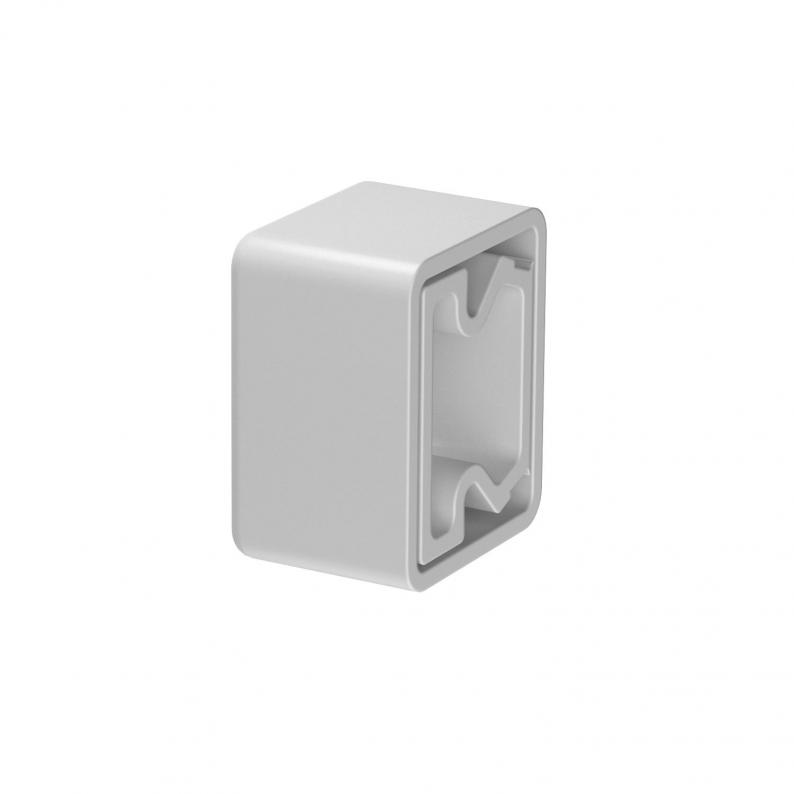

Edge protection ring KSR 20030, for LKM cable duct type LKM 20030
Type KSR20030 | Item no. 6249844 | EAN 4012196018710
Item no. / Type
6249844 / KSR20030
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 5 piece
5piece
Description
Edge protection ring for the open ends of LKM cable trunking.
Technical data
Dimensions
| Length | 23 mm |
|---|---|
| Width | 34 mm |
| Height | 28 mm |

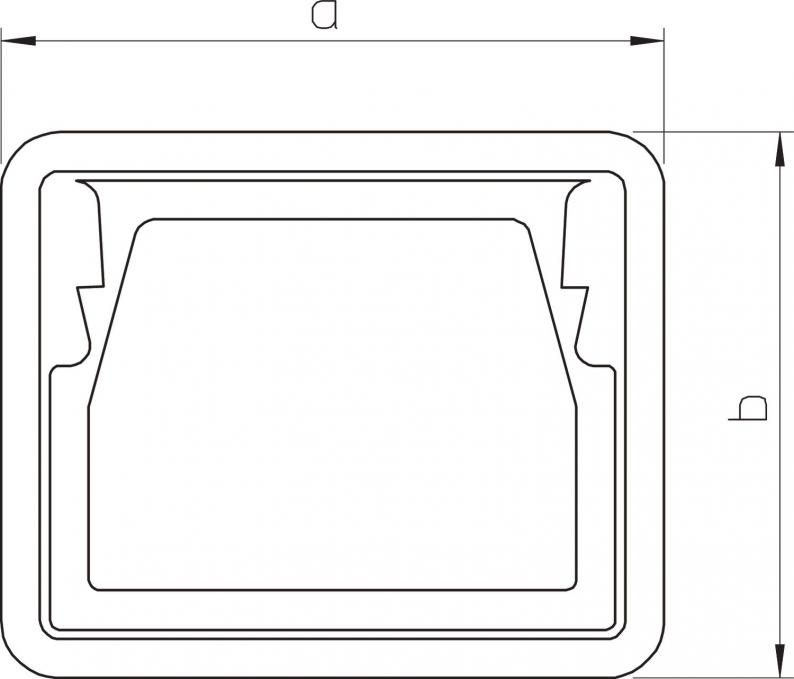

| Dimension b | 28 mm |
| Dimension a | 34 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Protection rating | IP30 |
| Protection rating IK code | IK10 |
| Suitable for | Cable routing duct |
| Type | Injection-moulded part |
| Permitted temperature range, max. | 90 °C |
| Permitted temperature range, min. | -5 °C |
| Dimension | 20x30mm |
| Material | Polyvinylchloride |
| Colour | Grey |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (4)
Declarations (4)
Certificates (1)
Instructions and Aid (1)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Dimension b
Dimension a
Item no.
KSR20030
28
34
6249844
KSR20030
Item no.
6249844
Dimension b
28
Dimension a
34
