Media pole for schools

The central point for future-orientated learning

Flexible - Individual - Decentralised Protection

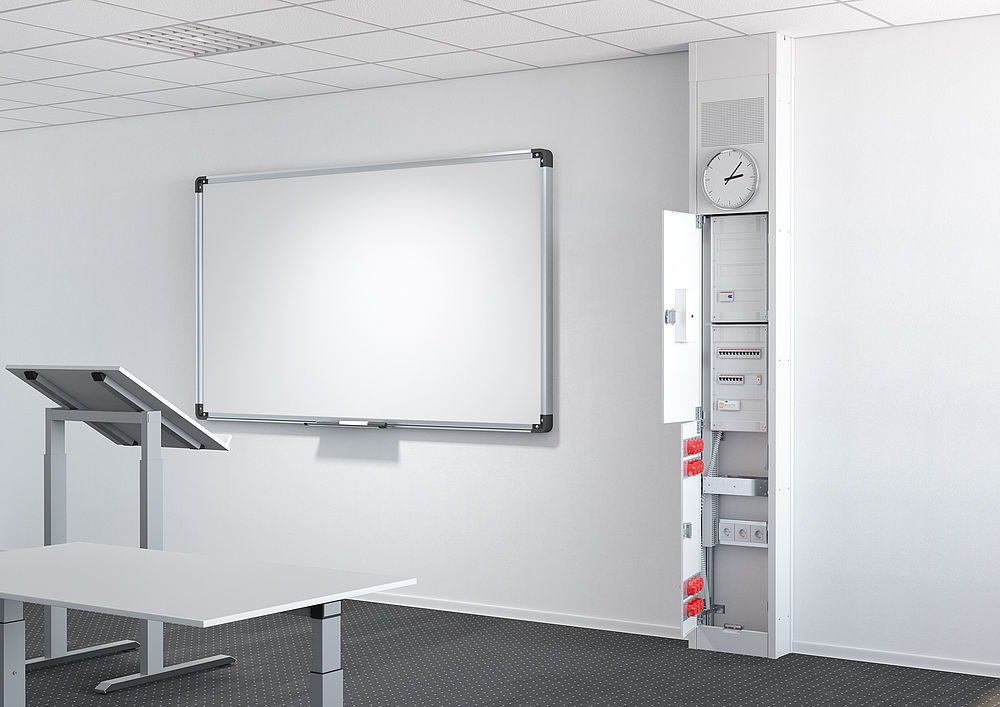

The requirements for equipping training rooms and classrooms are rising constantly and must be taken into account in new buildings and renovations. The combination of individual equipment and centrally controlled systems can be implemented optimally with media and communication poles. Everything necessary can be included in the pole, from the securing of electrical systems, individual light control, supplying information from central communication and emergency call systems, through to displaying the time. Thanks to its modular design, the solution presented here is absolutely flexible, adaptable and universally usable.

The benefits

  • Material: Powder-coated steel (RAL 9010)
  • Flexible height compensation with telescope panel
  • Removable side parts for simple retroinstallation
  • Open rear side with free space for vertical ladders
  • Flexible acceptance of microphones and signal emitters through C-rails behind the perforated sheet
  • Integrated, halogen-free channels for cable routing
  • Integrated distribution box with 2 x 36 PU
  • Solid universal locks in the doors to accept profile half cylinders
  • Installation of switch and plug-in devices on the front and access-protected behind a lockable door
  • Space for additional installations
  • Flexibility through modular structure

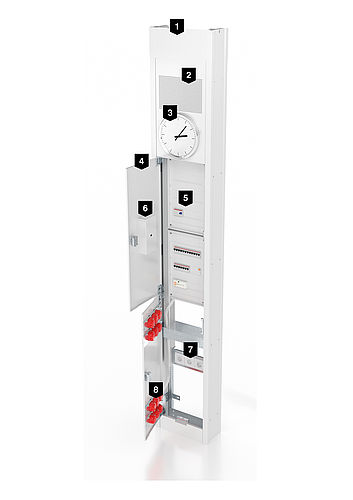

Numerous configuration possibilities

1. Telescopic cover for variable height adjustment
2. Inclusion of signal emitter, BMA and ELA loudspeaker
3. Empty field for equipping with a wall clock
4. Lockable door
5. Integrated low voltage distributor
6. Preparation for a school intercom
7. Seat for switch and plug-in devices inaccessible behind a lockable door
8. Seat for switch and plug-in devices in a lockable door using standard device sockets
